Recognize

Recognize

clip_image001

Path: Insert | Recognize

clip_image002  Located on the Walls toolbar.

clip_image003

Use this to ...

  • Create sheet metal parts from existing solid geometry.
  • Convert old sheet metal parts for use in the Generative Sheet Metal Design workbench.

Key Points

  • Solids must have a constant thickness.
  • All radii in the solids need to maintain constant thickness.

Prerequisites

  • You must be in the Generative Sheetmetal Design workbench.
  • You must have an existing solid model.
    Or
    You must have a previously created sheet metal part for conversion.

Process: Create Sheet Metal Parts from Existing Solid Geometry

1. Make sure you are in the Generative Sheetmetal Design workbench.

2. clip_image004  Click Sheet Metal Parameters. Define any necessary options in the Sheet Metal Parameters dialog.

clip_image005

3. Select Insert | Recognize. CATIA displays the Recognize Definition dialog. (Notice Full Recognition is pre-selected since walls will be recognized regardless.)

clip_image006

4. Pick the Reference Face which will be used for unfolding. The sheet metal parameters will be based on this face.

clip_image008

5. Activate With Bend Recognition and individually pick faces.

clip_image009

Or
Activate Full Recognition. This option automatically selects With Bend Recognition and propagates the selection to all tangent faces.

clip_image010

6. Click Preview to check the result.

clip_image012

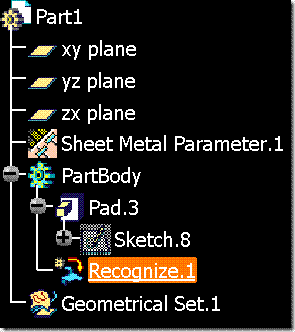

7. Click OK to recognize the part. CATIA displays Recognize.1 in the Specification Tree.

clip_image013
