Hopper Creation

Hopper Creation

clip_image001

clip_image002  Located on the Generative Sheetmetal Design toolbar.

clip_image003

Use this to ...

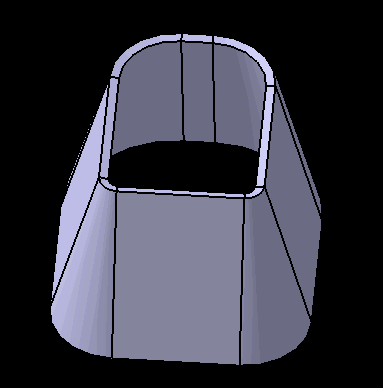

  • Create a planar, conical, or cylindrical hopper using two planar profiles.

Key Points

  • This command is only available on the toolbar.
  • The sketched profiles must be on parallel planes.
  • Corresponding radii must be concentric.
  • The term "opening line" in CATIA refers to the seam where the sheet metal joins to form the hopper; it is also the line from which the part unfolds.
  • The vertices selected to define endpoints for the opening line must be located on corresponding edges.
  • Points created to define the opening line must be coincident to a corresponding edge and in separate sketches. You can create sketch points to define the endpoints of the opening line. They must be coincident to a corresponding edge and in separate sketches from the profiles.

Prerequisites

  • You must be in the Generative Sheetmetal Design workbench.

Process: Creating a Hopper

1. Within the Generative Sheetmetal Design workbench, create a new part containing two parallel planes for the hopper profiles.

clip_image005

2. clip_image006  Define your sheet metal parameters.

clip_image008

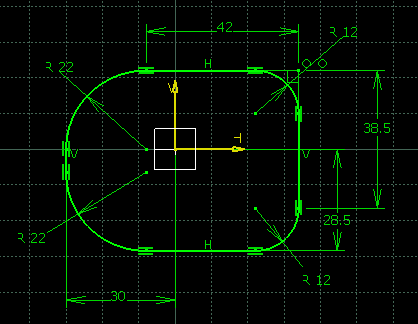

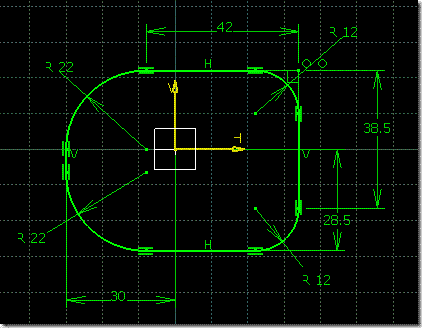

3. Pick a plane and create the first hopper profile using lines, circles, or arcs.

clip_image009

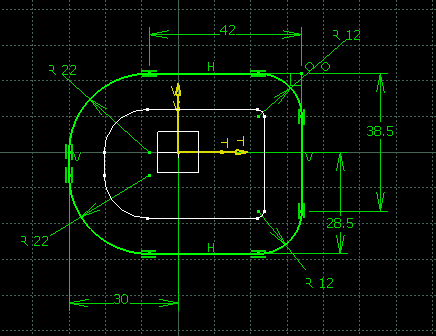

4. Create the second profile on the second plane. Make sure that the corresponding radii between sketches are coincident.

clip_image010

5. clip_image002[1]  Click Hopper on the Generative Sheet Metal toolbar. The Hopper dialog displays.

clip_image011

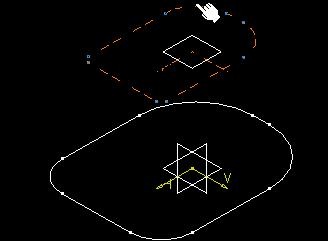

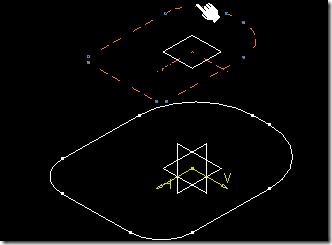

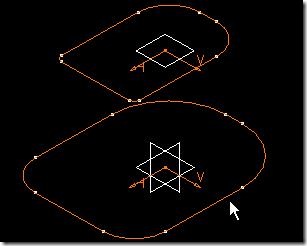

6. Pick the top profile.

clip_image013

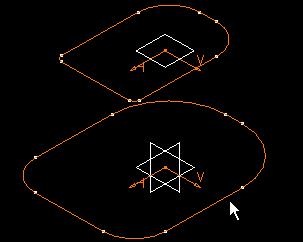

7. Pick the bottom profile.

clip_image015

8. In the top sketch, pick a vertex to define one end of the opening line (or seam). Note: The first vertex/point you pick must be on the first sketch you selected, not the second. CATIA won't recognize the pick if you select them out of order.

clip_image017

9. In the bottom sketch, pick a second vertex to define the opposite end of the opening line. It must be located on the corresponding edge.

clip_image019

10. A preview of the hopper and two arrows originating at the starting point appear. The green arrow indicates the fixed side of the hopper for unfolding; the red arrow shows the direction of thickening.

clip_image021

You can pick the arrow in the Graphics window or click Invert in the dialog to change direction.

clip_image022

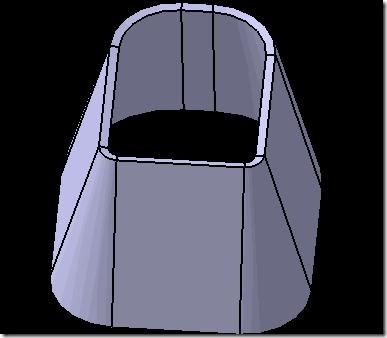

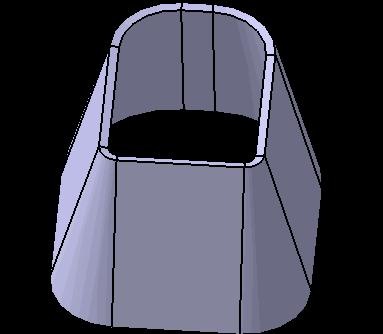

11. Click OK to create the hopper.

clip_image023

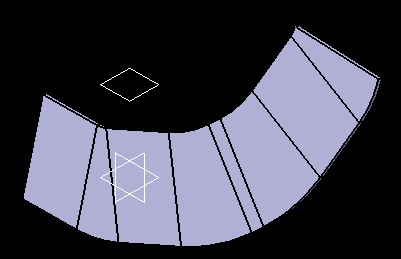

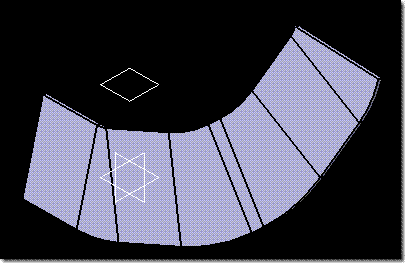

12. clip_image024  Click Fold/Unfold on the Generative Sheetmetal Design toolbar. The hopper unfolds at the opening line.

clip_image025

13. clip_image024[1]  Click Fold/Unfold again to refold the hopper.
