Options - Rolled Wall

Options

clip_image001

First Limit and Second Limit

With the exception of Type, Limit, and Length, separate values cannot be set.

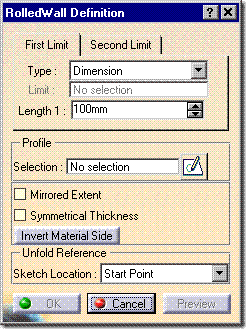

clip_image002

Type

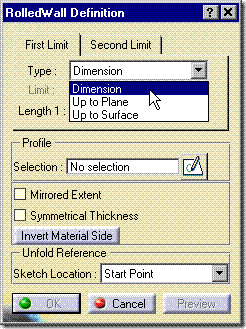

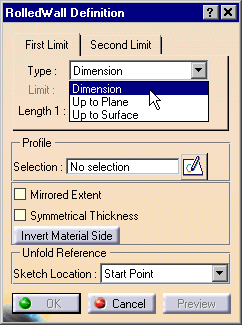

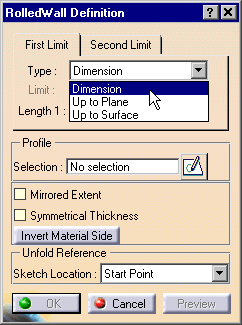

Use Dimension to enter a dimension. Notice the Limit option isn't available when Type is set to Dimension.

clip_image003

Use Up to Plane or Up to Surface and pick a plane or surface to define the ends. If you use either one, the Limit1 text in the graphic window disappears.

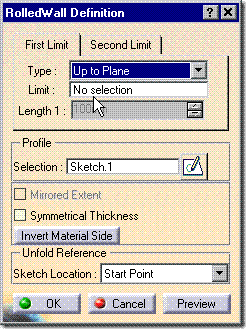

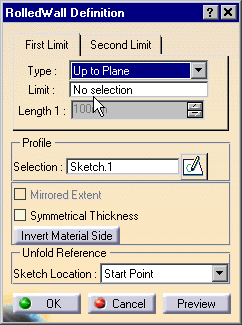

Limit

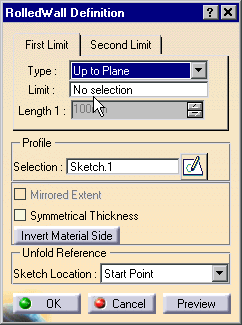

This option is available when using Up to Plane or Up to Surface. Pick a plane when using Up to Surface.

clip_image004


Length 1

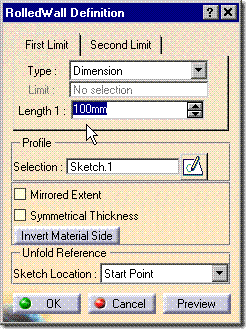

Enter the location of Limit1 or drag the text in the Graphics window to the desired length/position. The value is positive by default. This option is not available when using Up to Plane or Up to Surface.

clip_image005

clip_image001[1]

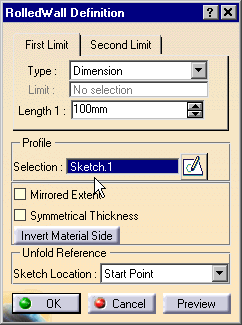

Profile

Select the sketch for the rolled wall. It must be either a closed circle or circular arc.

Selection

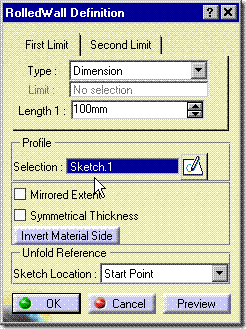

Shows the profile selected.

clip_image006

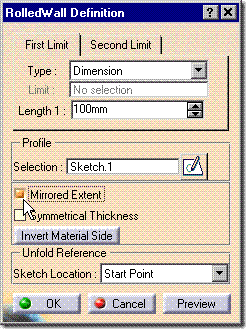

Mirrored Extent

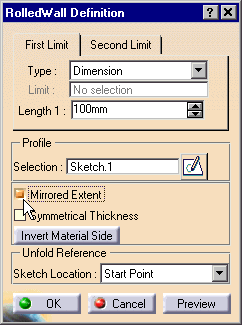

Extends the rolled wall in both directions from the sketch. If this option is active, you can only modify Limit1.

clip_image007

Symmetrical Thickness

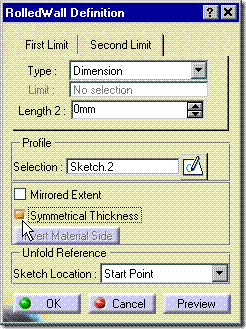

Creates thickness both inside and outside the sketch when active.

clip_image008

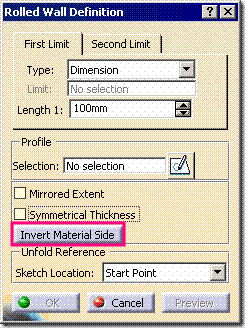

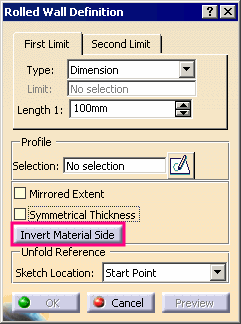

Invert Material Side
Inverts the direction in which material is created. This option is not available if Symmetrical Thickness is active.

clip_image009

clip_image001[2]

Unfold Reference

CATIA creates two symmetrical faces so you can unfold the rolled wall.

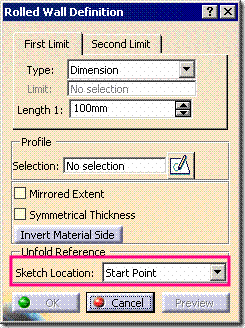

Sketch Location

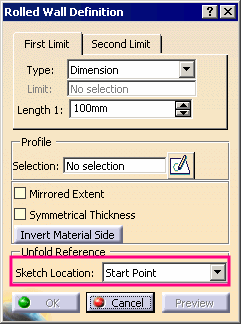

Defines the point on the sketch, Start Point, End Point, or Middle Point, from which the sketch will unfold.

clip_image010

clip_image001[3]

Preview

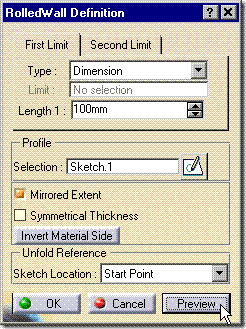

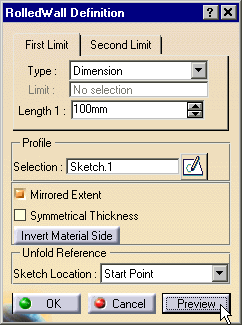

Click this option to preview the rolled wall. This displays the sketch radius, which can be interactively modified, and both limits, which you can drag to new positions/values. Click Preview again to update the image.

clip_image011

Tips

  • The Rolled Walls option differs from the Extrusions option in that you can have a closed sketch but you cannot include lines.
